2 Core Sheathed Flat Cable – PVC Insulated Flexible Cable
2 Core Sheathed Flat Cable (2C Series) is a premium flexible electrical cable featuring stranded copper conductors, PVC insulated twin cores, and a durable flat PVC outer sheath. Available in multiple conductor sizes with current ratings from 0.9 Amp to 7 Amp, it is ideal for portable tools, domestic appliances, lighting systems, extension cords, and OEM cable assemblies.
[yith_wcwl_add_to_wishlist]
- Description
- Reviews (0)
Description

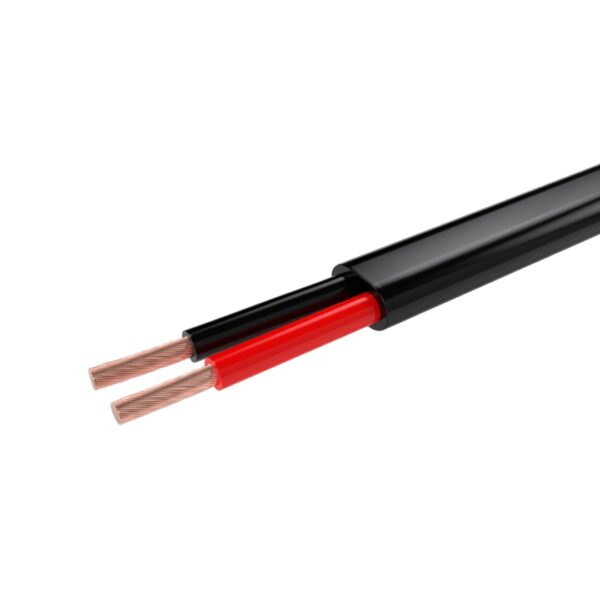

2 Core Sheathed Flat Cable – PVC Insulated Flexible Cable
The 2 Core Sheathed Flat Cable (2C Series) from Metaplast Engineering LLP is a premium-quality flexible electrical cable manufactured with high-conductivity stranded copper conductors, individually insulated with high-grade PVC and protected by an overall PVC flat sheath. Designed for light-duty electrical applications, the cable provides excellent flexibility, reliable conductivity, and long-lasting performance.
Its flat twin-core construction allows for easy installation and routing in confined spaces, making it ideal for portable electrical tools, household appliances, lighting equipment, and general low-power electrical connections. Suitable for both indoor and outdoor use, the cable offers dependable performance and enhanced mechanical protection.
Key Features
- High Conductivity Stranded Copper Conductors
- Twin PVC Insulated Flexible Cores
- Durable PVC Flat Outer Sheath
- Excellent Flexibility & Easy Installation
- Reliable Electrical Performance
- Heat, Moisture & Abrasion Resistant
- Suitable for Indoor & Outdoor Use
- Long Service Life
- Available in Multiple Conductor Sizes
- Ideal for OEM & Industrial Applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 2 Core Sheathed Flat Cable |
| Series | 2C |
| Conductor Material | Stranded Copper |
| Number of Cores | 2 Core |
| Conductor Type | Multi-Strand |
| Core Insulation | PVC |
| Outer Sheath | PVC |
| Cable Shape | Flat |
| Current Capacity | 0.9 Amp – 7 Amp |
| Conductor Area | 0.114 mm² – 0.754 mm² |
| Application | Portable Tools, Domestic Appliances & General Wiring |
Applications
- Portable Electrical Tools
- Domestic Appliances
- LED Lighting Systems
- Extension Cords
- Household Electrical Equipment
- Small Electronic Devices
- General Electrical Wiring
- OEM Cable Assemblies
Description
| Cat No. | No of Strands SWG | ABC Conductor Size in mm | Cross Sectional Area of Conductor | Nominal Insulation Thickness in mm | Nominal Sheath Thickness in mm(+-2%) | *Current Carrying Capacity(AMPS) | Maximum Conductor Resistance )0hms/Km |
|---|---|---|---|---|---|---|---|
| 2C-01 | 14/42 | 0.102 | 0.114 | 0.65 | 0.50 | 0.9 | 169.6 |
| 2C-02 | 14/41 | 0.112 | 0.138 | 0.65 | 0.50 | 01.0 | 140.6 |
| 2C-03 | 14/40 | 0.122 | 0.164 | 0.65 | 0.50 | 1.3 | 118.5 |
| 2C-04 | 14/39 | 0.132 | 0.192 | 0.70 | 0.50 | 1.5 | 101.3 |
| 2C-05 | 14/38 | 0.152 | 0.254 | 0.70 | 0.50 | 2.0 | 76.4 |
| 2C-06 | 14/36 | 0.193 | 0.410 | 0.70 | 0.50 | 3.2 | 47.4 |
| 2C-07 | 1636 | 0.193 | 0.468 | 0.70 | 0.60 | 3.7 | 41.4 |
| 2C-08 | 23/42 | 0.102 | 0.188 | 0.75 | 0.50 | 1.5 | 103.2 |
| 2C-09 | 23/41 | 0.112 | 0.22 | 0.75 | 0.50 | 1.8 | 85.6 |
| 2C-10 | 23/40 | 0.122 | 0.269 | 0.70 | 0.50 | 2.1 | 72.2 |
| 2C-11 | 23/39 | 0.132 | 0.315 | 0.70 | 0.50 | 2.5 | 61.6 |
| 2C-12 | 23/38 | 0.152 | 0.418 | 0.70 | 0.60 | 3.3 | 46.5 |
| 2C-13 | 23/36 | 0.193 | 0.673 | 0.70 | 0.60 | 5.3 | 28.8 |
| 2C-14 | 16/0.2 | 0.203 | 0.503 | 0.65 | 0.60 | 4.0 | 38.6 |
| 2C-15 | 24/0.2 | 0.203 | 0.754 | 0.70 | 0.60 | 7.0 | 25.7 |
Metaplast Engineering LLP manufactures premium-quality electrical cables, power cords, molded plugs, networking cables, and connectivity solutions engineered for safety, durability, and reliable performance across residential, commercial, and industrial applications.
