Coaxial Cable (RG6 / RG11 / RG59)

0 out of 5

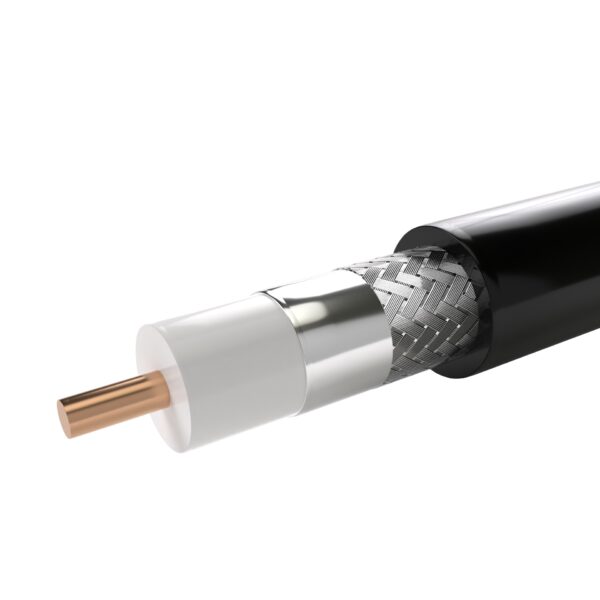

Metaplast Coaxial Cable is a premium 75 Ohm signal transmission cable available in RG6, RG11, and RG59 variants. Featuring an annealed copper conductor, gas-expanded foam PE dielectric, bonded AL/PET foil, and high-coverage braided shielding, it delivers low attenuation, excellent EMI protection, and crystal-clear signal transmission for Cable TV, CCTV, satellite, broadband, and RF communication systems.

Category: Audio and Video Cables

[yith_wcwl_add_to_wishlist]

Description
Reviews (0)

Description

Premium High Bandwidth Coaxial Cable for Cable TV, CCTV & RF Signal Transmission

The Coaxial Cable from Metaplast Engineering LLP is engineered for superior signal transmission with minimal attenuation, making it the ideal solution for Cable TV, CCTV surveillance, satellite communication, broadband internet, and RF applications. Manufactured using an annealed electrolytic grade solid copper conductor, the cable features a gas-expanded closed-cell polyethylene foam dielectric that delivers exceptionally low transmission losses and stable impedance.

For enhanced protection against electromagnetic interference (EMI) and moisture, the cable incorporates bonded AL/PET foil shielding along with high-coverage braided shielding, ensuring crystal-clear signal quality over long distances. Its durable PVC outer jacket provides excellent mechanical strength and long-lasting performance in indoor and outdoor installations.

Key Features

Annealed Electrolytic Grade Copper Conductor
Gas Expanded Closed Cell Foam PE Dielectric
Double Shielded Construction
High Coverage Braided Shield
Bonded AL/PET Foil Shielding
Low Signal Attenuation
Excellent EMI & RFI Protection
High Bandwidth Performance
Moisture Resistant Construction
Durable PVC Outer Jacket
Suitable for Long Distance Signal Transmission
Available in RG6, RG11 & RG59 Variants

Technical Specifications

Parameter	Specification
Product Type	Coaxial Cable
Available Types	RG6, RG11, RG59
Inner Conductor	Annealed Electrolytic Grade Copper
Dielectric	Gas Expanded Closed Cell Polyethylene Foam
Shielding	AL/PET Bonded Foil + High Coverage Braided Shield
Outer Jacket	PVC
Characteristic Impedance	75 Ω
Capacitance	52–53 pF/m
Bandwidth	High Frequency RF Transmission
Applications	TV, CCTV, Satellite, Broadband, RF Communication

Description

Technical Specification
Construction & Dimensions	Values in mm
Diameter Of	RG6	RG11	RG59
Inner Conductor	1± 0.02	1.66±0.02	0.81±0.02
Dielectric	4.80±0.20	1.66±0.02	0.81±0.02
1st Outer Conductor	≤5.10	≤7.52	≤3.90
2nd Outer Conductor	≤5.35	≤7.80	≤4.12
Jacket	6.90 ± 0.20	10.0 ± 0.20	6.10 ± 0.20
Electrical Performance
	RG6	RG11	RG59
DC Resistancce in 0hm/km
Inner Conductor	22	8	35
Outer Conductor	37	26	40
Impedance(Ohm/km)	75±3.0	75±3.0	75±3.0
Impedance(Ohm/km)	75±3.0	75±3.0	75±3.0
Capacitance (pf/m)	52 ± 2.0	53 ± 2.0	53 ± 2.0
Wave Velocity Rate %	82%	85%	87%
Return Loss (≥dB)
VHF0.300MHz	20dB	20dB	20dB
UHF 300-960 MHz	18 dB	18 dB	18 dB

Applications

Cable Television (CATV)
CCTV Surveillance Systems
Satellite TV Installations
Broadband Internet Networks
RF Signal Distribution
MATV & SMATV Systems
Digital Video Transmission
Security & Monitoring Systems
Commercial Buildings
Residential Communication Networks

Why Choose Metaplast Coaxial Cables?

Superior Signal Quality with Low Transmission Loss
Double Shielded for Maximum Noise Protection
High Bandwidth for HD & Digital Signals
Excellent Resistance to Moisture and Interference
Stable 75 Ohm Impedance
Long Service Life
Reliable Indoor & Outdoor Performance
Manufactured Using Premium Quality Materials

Metaplast Engineering LLP manufactures premium-quality coaxial cables, LAN cables, networking cables, power cables, industrial wires, molded plugs, and connectivity solutions designed to deliver exceptional performance, durability, and reliability for residential, commercial, industrial, and communication applications.
