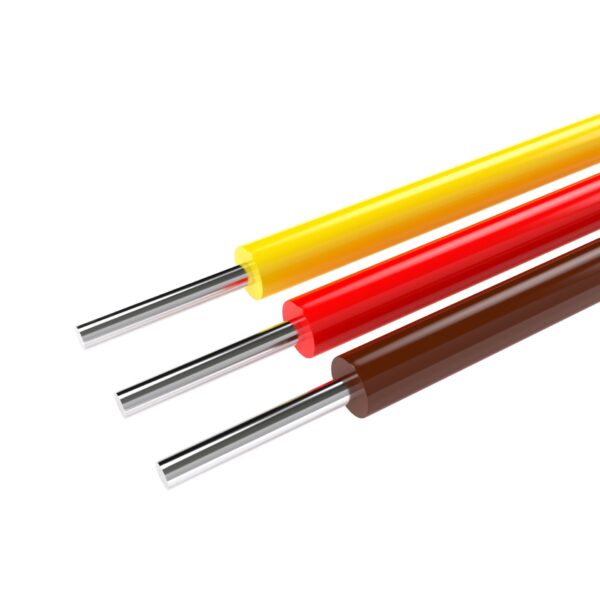

Hook Up Wire – PVC Insulated Tinned Copper Wire
Hook Up Wire (HK Series) is a premium PVC insulated single-core wire manufactured with solid tinned annealed copper conductors for reliable internal wiring. Available in conductor sizes from 0.07 mm² to 0.66 mm² with current capacities from 0.4 Amp to 5.4 Amp, it is ideal for control panels, switchgear, electronic equipment, instrumentation, and OEM electrical assemblies.
[yith_wcwl_add_to_wishlist]
- Description
- Reviews (0)
Description
Hook Up Wire – PVC Insulated Tinned Copper Wire
Model: HK Series
The Hook Up Wire (HK Series) from Metaplast Engineering LLP is a premium-quality single-core electrical wire designed for internal wiring in electrical and electronic equipment. Manufactured using solid, tinned, and annealed copper conductors, the wire offers excellent electrical conductivity, corrosion resistance, and reliable long-term performance.
Insulated with high-quality PVC compound, the cable provides superior electrical insulation, flexibility, and mechanical protection, making it ideal for wiring control panels, switchgear, electrical cabinets, electronic assemblies, and OEM equipment. Engineered for dependable low-voltage applications, the Hook Up Wire ensures safe and efficient electrical connections.
Key Features
- Solid Tinned & Annealed Copper Conductor
- Premium PVC Insulation
- Excellent Electrical Conductivity
- Corrosion Resistant Construction
- High Mechanical Strength
- Easy to Strip & Terminate
- Reliable Low Voltage Performance
- Durable & Long Service Life
- Available in Multiple Conductor Sizes
- Ideal for OEM & Industrial Applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Hook Up Wire |
| Series | HK |
| Conductor Material | Solid Tinned Annealed Copper |
| Conductor Type | Single Core |
| Insulation Material | PVC |
| Current Capacity | 0.4 Amp – 5.4 Amp |
| Conductor Area | 0.07 mm² – 0.66 mm² |
| Maximum Overall Diameter | 0.90 mm – 2.30 mm |
| Application | Internal Electrical & Electronic Wiring |
Description
| Cat No. | No of Strands SWG | ATC Conductor Size in mm | Cross Sectional Area of Conductor | Nominal Insulation Thickness in mm | Maximum Overall Dia in mm(+-2%) | *current Carrying Capacity (Amps) | Maximum Conductor Resistance )hms/Km |
|---|---|---|---|---|---|---|---|
| HK-01 | 1/31 | 0.295 | 0.07 | 0.30 | 0.90 | 0.4 | 272.9 |
| HK-02 | 1/30 | 0.315 | 0.08 | 0.30 | 0.95 | 0.5 | 239.3 |
| HK-03 | 1/28 | 0.376 | 0.11 | 0.35 | 1.10 | 0.9 | 168.0 |
| HK-04 | 1/26 | 0.457 | 0.16 | 0.40 | 1.20 | 1.3 | 113.7 |
| HK-05 | 1/25 | 0.508 | 0.20 | 0.40 | 1.40 | 1.7 | 92.0 |
| HK-06 | 1/23 | 0.610 | 0.29 | 0.45 | 1.50 | 2.4 | 63.8 |
| HK-07 | 1/22 | 0.711 | 0.40 | 0.50 | 1.70 | 3.2 | 46.9 |
| HK-08 | 1/20 | 0.914 | 0.66 | 0.70 | 2.30 | 5.4 | 28.4 |
Applications
- Electrical Control Panels
- Switchgear Assemblies
- Electronic Equipment
- Industrial Automation Systems
- Electrical Cabinets
- Control Wiring
- PCB & Internal Equipment Wiring
- Instrumentation Systems
- OEM Electrical Manufacturing
- Low Voltage Electrical Connections
Metaplast Engineering LLP manufactures premium-quality electrical wires, instrumentation cables, networking cables, power cords, molded plugs, and connectivity solutions engineered for superior conductivity, safety, durability, and long-term reliability across industrial, commercial, and OEM applications.
